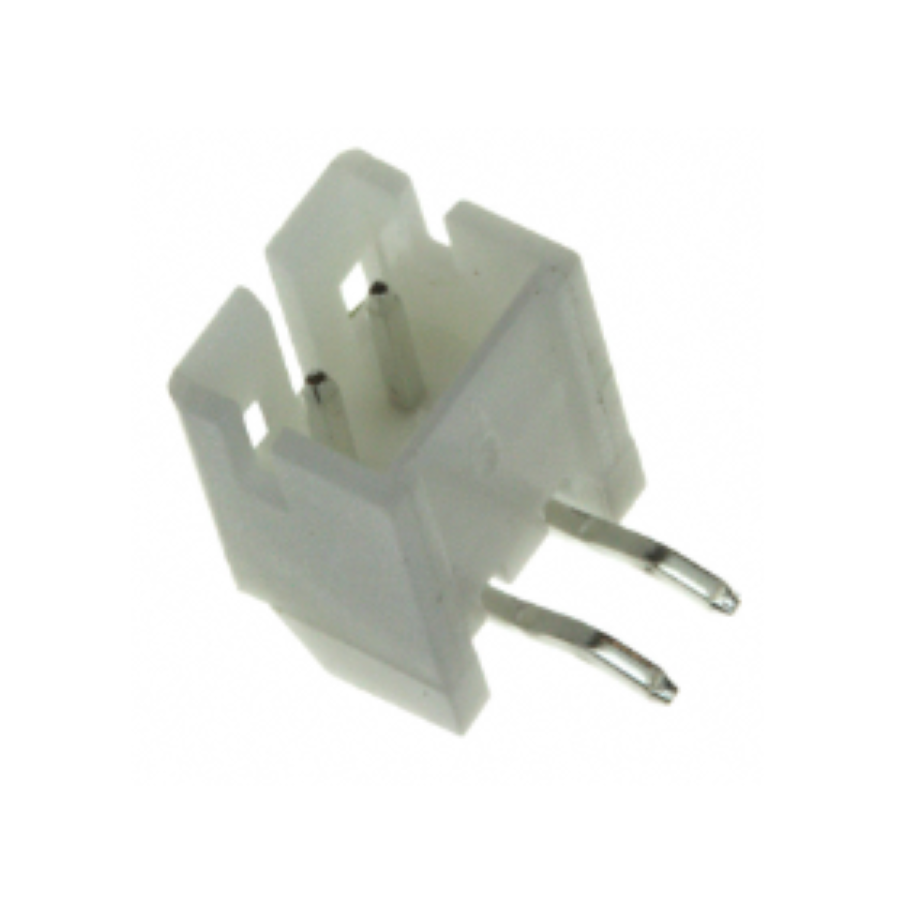

440055-4
Manufacturer:
TE Connectivity
Mfr.Part #:
440055-4
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:4 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Width | 7.7 mm |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Height | 4.95 mm |
| Packaging | Bulk |
| Depth | 7.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Lead Length | 3.4036 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Wire/Cable Gauge | 24 AWG |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Connector System | Wire-to-Board |
| Contact Style | Straight |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 3 A |
| Housing Color | Natural |
| Plating | Tin |
| Insulation Diameter | 1.4986 mm |
| Contact Mating Length | 3.5052 mm |
| PCB Thickness | 1.6 mm |
| Tail Length | 3.4 mm |
| Contact Gender | Male |
| Mating Post Length | 3.5 mm |
| Contact Shape | Square |
| Sealable | No |
| Mating Retention | Without |
| Termination Post Length | 3.4 mm |
| PCB Mount Retention | With |
| PCB Mount Alignment | Without |
Stock: 9510
Distributors
pcbx
pcbxUnit Price$0.14375
Ext.Price$0.14375
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14375 | $0.14375 |
| 10 | $0.12385 | $1.23850 |
| 50 | $0.11417 | $5.70850 |
| 100 | $0.10524 | $10.52400 |
| 500 | $0.09854 | $49.27000 |
| 1000 | $0.09227 | $92.27000 |
| 3000 | $0.08640 | $259.20000 |
| 5000 | $0.08090 | $404.50000 |
| 10000 | $0.07575 | $757.50000 |
